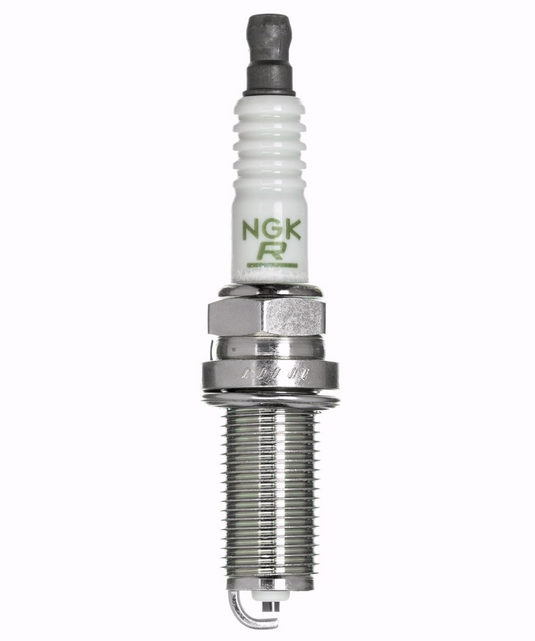

NGK LFR7A Spark Plug

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugates ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

Shell Dimensions:

• Tread Diameter: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 26.5mm (1.04")
• Hex Size: 5/8" (16mm)
• Terminal Type: Solid
• Overall Height: ISO
• Gap: .035" (0.9mm)
